gazebo和rviz2联合仿真——ROS2焊接机械臂（三）

摘要：本文介绍了如何实现ROS2中rviz2和gazebo的联动配置。首先提供了上一节配置好的工作空间网盘链接，详细说明了.bashrc文件的可选修改步骤。接着讲解了功能包的整体运行逻辑，包括moveit2、rviz2和gazebo的交互关系。重点配置了Gazebo功能包结构，创建了controllers.yaml控制器配置文件，并编写了综合启动脚本gazebo_moveit.launch.py

2301_80760123

1626人浏览 · 2025-12-03 15:34:22

2301_80760123 · 2025-12-03 15:34:22 发布

上一节我们把Moveit2配置好，这次我们要实现rviz2和gazebo的联动，我把上一节的工作空间放到百度网盘链接里面了，方便大家跟着操作。
通过网盘分享的文件：luck_ws
链接: https://pan.baidu.com/s/1NQjHV8oLYmmbcInKctqYEw?pwd=luck 提取码: luck

一，修改 ~/.bashrc 文件(可选)

1.1备份当前的.bashrc文件

cp ~/.bashrc ~/.bashrc_backup

1.2编辑文件

打开文件

nano ~/.bashrc

在您的 ~/.bashrc文件末尾添加以下内容（注意：如果您的ROS2版本不是humble，请将humble替换为您的实际版本（如foxy、galactic等））：

# 添加到 ~/.bashrc 的简化版本
source /opt/ros/humble/setup.bash 2>/dev/null
source ~/luck_ws/install/setup.bash 2>/dev/null

按 Ctrl+O保存文件，按 Enter确认文件名，按 Ctrl+X退出nano

1.3使更改立即生效

source ~/.bashrc

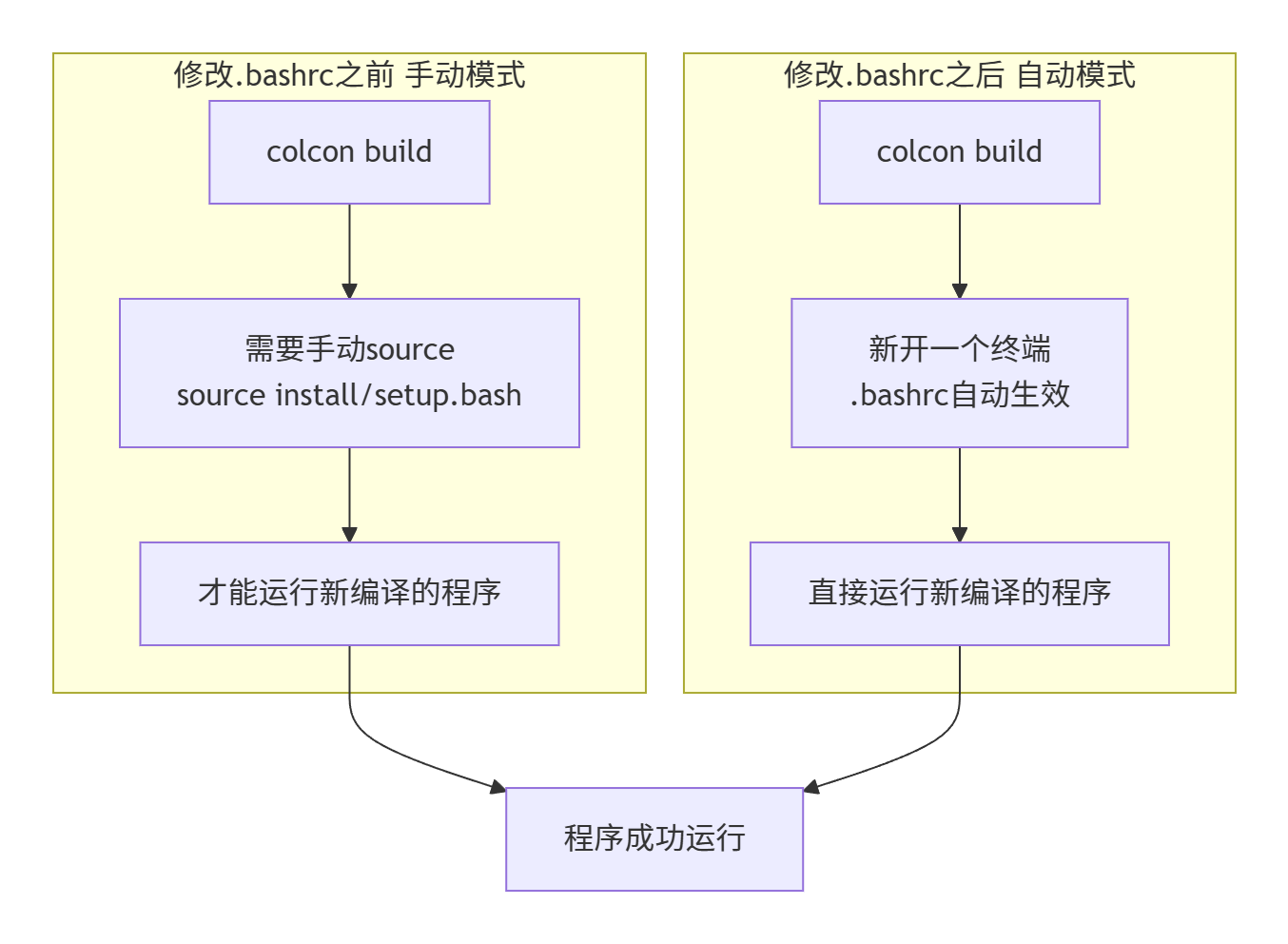

这样做的好处是：以后colcon build后，打开一个新终端（因为每打开一个新终端，会自动source ~/.bashrc），就可以直接ros2 run了
在这里插入图片描述

二，配置功能包

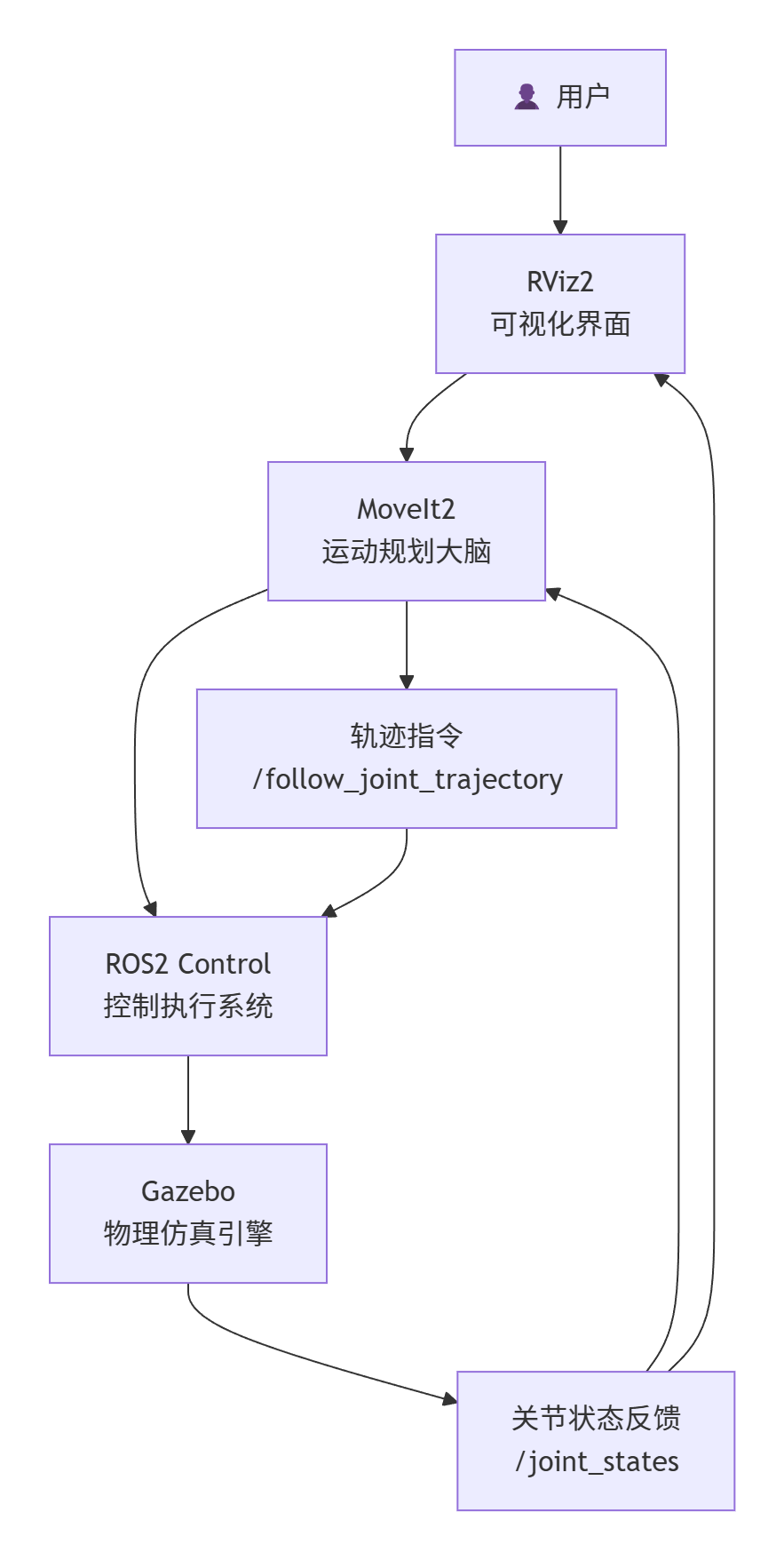

配置功能包前，我们要了解整体运行逻辑，或者说moveit2，rviz2，gazebo都起到了什么作用，如下图：
在这里插入图片描述

2.1配置Gazebo功能包结构

cd ~/luck_ws/src
ros2 pkg create luck_gazebo --build-type ament_python --dependencies gazebo_ros gazebo_ros2_control controller_manager

创建config目录和yaml文件：如果 config文件夹尚不存在，需要先创建它，然后在该目录下创建 controllers.yaml文件。

cd luck_gazebo
mkdir -p config
touch config/controllers.yaml

此文件为 ros2_control/controller_manager 以及控制器实例的配置文件。
它定义 controller_manager 的参数，以及要加载的控制器实例及其参数。
将下面信息写入文件，并保存


controller_manager:
  ros__parameters:
    update_rate: 100  # Hz

    # 自动启动的控制器
    joint_state_broadcaster:
      type: joint_state_broadcaster/JointStateBroadcaster

    test_group_controller:
      type: joint_trajectory_controller/JointTrajectoryController

joint_state_broadcaster:
  ros__parameters:
    {}

test_group_controller:
  ros__parameters:
    joints:
      - joint_1
      - joint_2
      - joint_3
      - joint_4
      - joint_5
      - joint_6
    command_interfaces:
      - position
    state_interfaces:
      - position
      - velocity
    state_publish_rate: 50.0
    action_monitor_rate: 20.0
    allow_partial_joints_goal: false
    # PID增益配置（防止机械臂下落）
    gains:
      joint_1: {p: 1000.0, d: 50.0, i: 0.1, i_clamp: 1.0}
      joint_2: {p: 1000.0, d: 50.0, i: 0.1, i_clamp: 1.0}
      joint_3: {p: 1000.0, d: 50.0, i: 0.1, i_clamp: 1.0}
      joint_4: {p: 1000.0, d: 50.0, i: 0.1, i_clamp: 1.0}
      joint_5: {p: 1000.0, d: 50.0, i: 0.1, i_clamp: 1.0}
      joint_6: {p: 1000.0, d: 50.0, i: 0.1, i_clamp: 1.0}

导航到你的功能包目录并创建 launch文件夹

cd ~/luck_ws/src/luck_gazebo
mkdir -p launch

在 launch目录下创建 gazebo_moveit.launch.py文件。

touch launch/gazebo_moveit.launch.py

这个文件是一个综合启动（launch）脚本，用来在 ROS 2 中同时启动 Gazebo、MoveIt、Move Group、控制器（controller_manager）和 RViz，以便做仿真、运动规划与可视化联调。
把下面内容写进去，并保存

#!/usr/bin/env python3
"""
完整的Gazebo + MoveIt + RViz联合调试Launch文件
"""
import os
from launch import LaunchDescription
from launch.actions import ExecuteProcess, TimerAction, IncludeLaunchDescription
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import PathJoinSubstitution
from launch_ros.actions import Node
from launch_ros.substitutions import FindPackageShare
from ament_index_python.packages import get_package_share_directory
from moveit_configs_utils import MoveItConfigsBuilder
import xacro


def generate_launch_description():
    # 包路径
    pkg_luck_robot = get_package_share_directory('luck_robot')
    pkg_luck_gazebo = get_package_share_directory('luck_gazebo')
    pkg_luck_description = get_package_share_directory('luck_description')

    # 控制器配置
    controller_config = os.path.join(pkg_luck_gazebo, 'config', 'controllers.yaml')

    # MoveIt配置
    moveit_config = MoveItConfigsBuilder("luck_description", package_name="luck_robot").to_moveit_configs()

    # 处理xacro生成URDF - 使用命令行参数方式
    initial_positions_file = os.path.join(pkg_luck_robot, 'config', 'initial_positions.yaml')

    # 直接调用xacro命令处理文件
    import subprocess
    xacro_file = os.path.join(pkg_luck_robot, 'config', 'luck_description.urdf.xacro')
    result = subprocess.run(
        ['xacro', xacro_file,
         f'initial_positions_file:={initial_positions_file}',
         'use_sim:=true'],
        capture_output=True,
        text=True,
        check=True
    )
    robot_description_content = result.stdout

    # 动态注入controller配置到Gazebo插件
    robot_description_content = robot_description_content.replace(
        '<plugin filename="libgazebo_ros2_control.so" name="gazebo_ros2_control">\n        </plugin>',
        f'<plugin filename="libgazebo_ros2_control.so" name="gazebo_ros2_control">\n            <parameters>{controller_config}</parameters>\n        </plugin>'
    )

    # 替换mesh路径为绝对路径
    robot_description_content = robot_description_content.replace(
        'package://luck_description',
        f'file://{pkg_luck_description}'
    )

    # Robot State Publisher
    robot_state_publisher = Node(
        package='robot_state_publisher',
        executable='robot_state_publisher',
        name='robot_state_publisher',
        output='screen',
        parameters=[{
            'robot_description': robot_description_content,
            'use_sim_time': True
        }]
    )

    # 启动Gazebo
    gazebo = ExecuteProcess(
        cmd=['gazebo', '--verbose', '-s', 'libgazebo_ros_init.so', '-s', 'libgazebo_ros_factory.so'],
        output='screen'
    )

    # Spawn机器人
    spawn_entity = Node(
        package='gazebo_ros',
        executable='spawn_entity.py',
        arguments=[
            '-topic', 'robot_description',
            '-entity', 'luck_robot',
            '-x', '0',
            '-y', '0',
            '-z', '0.1'
        ],
        output='screen'
    )

    # 加载并激活joint_state_broadcaster
    joint_state_broadcaster_spawner = Node(
        package="controller_manager",
        executable="spawner",
        arguments=["joint_state_broadcaster"],
        output='screen'
    )

    # 加载并激活test_group_controller
    test_group_controller_spawner = Node(
        package="controller_manager",
        executable="spawner",
        arguments=["test_group_controller"],
        output='screen'
    )

    # MoveGroup节点 - 增加trajectory execution参数
    trajectory_execution_params = {
        'moveit_manage_controllers': True,
        'trajectory_execution.allowed_execution_duration_scaling': 2.0,
        'trajectory_execution.allowed_goal_duration_margin': 5.0,
        'trajectory_execution.allowed_start_tolerance': 0.5,  # 增大到0.5弧度
        'trajectory_execution.execution_duration_monitoring': False,
    }

    move_group_params = [
        moveit_config.to_dict(),
        trajectory_execution_params,
        {'use_sim_time': True}
    ]

    move_group_node = Node(
        package='moveit_ros_move_group',
        executable='move_group',
        output='screen',
        parameters=move_group_params,
    )

    # RViz配置
    rviz_config_file = PathJoinSubstitution(
        [FindPackageShare("luck_robot"), "config", "moveit.rviz"]
    )

    # RViz节点
    rviz_node = Node(
        package="rviz2",
        executable="rviz2",
        name="rviz2",
        output="log",
        arguments=["-d", rviz_config_file],
        parameters=[
            moveit_config.robot_description_semantic,
            moveit_config.robot_description_kinematics,
            moveit_config.planning_pipelines,
            moveit_config.joint_limits,
            {"use_sim_time": True},
        ],
    )

    return LaunchDescription([
        # 1. 启动Gazebo和robot_state_publisher
        robot_state_publisher,
        gazebo,

        # 2. 8秒后spawn机器人
        TimerAction(
            period=8.0,
            actions=[spawn_entity]
        ),

        # 3. 10秒后加载控制器（关键：防止机械臂下落）
        TimerAction(
            period=10.0,
            actions=[joint_state_broadcaster_spawner]
        ),

        # 4. 11秒后激活轨迹控制器
        TimerAction(
            period=11.0,
            actions=[test_group_controller_spawner]
        ),

        # 5. 12秒后启动MoveGroup（给控制器充分时间稳定）
        TimerAction(
            period=12.0,
            actions=[move_group_node]
        ),

        # 6. 17秒后启动RViz
        TimerAction(
            period=17.0,
            actions=[rviz_node]
        ),
    ])

打开 ~/luck_ws/src/luck_gazebo/setup.py文件。

nano ~/luck_ws/src/luck_gazebo/setup.py

您需要修改 setup()函数中的 data_files参数，确保它包含了安装 launch和 config目录的指令。
修改后的 setup.py文件示例：

import os
from glob import glob
from setuptools import find_packages, setup

package_name = 'luck_gazebo'

setup(
    name=package_name,
    version='0.0.0',
    packages=find_packages(exclude=['test']),
    data_files=[
        ('share/ament_index/resource_index/packages', ['resource/' + package_name]),
        ('share/' + package_name, ['package.xml']),
        # 安装 launch 目录下的所有 .launch.py 文件 [1,4](@ref)
        (os.path.join('share', package_name, 'launch'), glob('launch/*.launch.py')),
        # 安装 config 目录下的所有 .yaml 文件 [1,4](@ref)
        (os.path.join('share', package_name, 'config'), glob('config/*.yaml')), # 请确保路径与您的目录名一致，通常是'config'
    ],
    install_requires=['setuptools'],
    zip_safe=True,
    maintainer='wkl',
    maintainer_email='wkl@todo.todo',
    description='TODO: Package description',
    license='TODO: License declaration',
    extras_require={
        'test': [
            'pytest',
        ],
    },
    entry_points={
        'console_scripts': [
        ],
    },
)

2.2修改luck_robot功能包文件

2.2.1修改src/luck_robot/config/luck_description.ros2_control.xacro文件

├─ 添加use_sim参数到macro定义
├─ 条件加载GazeboSystem/GenericSystem
├─ 修复xacro.load_yaml调用方式

该文件定义了一个 xacro 宏 luck_description_ros2_control，用于在 URDF 中插入 ros2_control 配置块。

<?xml version="1.0"?>
<robot xmlns:xacro="http://www.ros.org/wiki/xacro">
   <xacro:macro name="luck_description_ros2_control" params="name initial_positions_file use_sim:=true">
       <xacro:property name="initial_positions" value="${xacro.load_yaml(initial_positions_file)['initial_positions']}"/>

       <ros2_control name="${name}" type="system">
           <hardware>
               <xacro:if value="${use_sim}">
                   <!-- For Gazebo simulation -->
                   <plugin>gazebo_ros2_control/GazeboSystem</plugin>
               </xacro:if>
               <xacro:unless value="${use_sim}">
                   <!-- For real hardware or mock testing -->
                   <plugin>mock_components/GenericSystem</plugin>
               </xacro:unless>
           </hardware>
           <joint name="joint_1">
               <command_interface name="position"/>
               <state_interface name="position">
                 <param name="initial_value">${initial_positions['joint_1']}</param>
               </state_interface>
               <state_interface name="velocity"/>
           </joint>
           <joint name="joint_2">
               <command_interface name="position"/>
               <state_interface name="position">
                 <param name="initial_value">${initial_positions['joint_2']}</param>
               </state_interface>
               <state_interface name="velocity"/>
           </joint>
           <joint name="joint_3">
               <command_interface name="position"/>
               <state_interface name="position">
                 <param name="initial_value">${initial_positions['joint_3']}</param>
               </state_interface>
               <state_interface name="velocity"/>
           </joint>
           <joint name="joint_4">
               <command_interface name="position"/>
               <state_interface name="position">
                 <param name="initial_value">${initial_positions['joint_4']}</param>
               </state_interface>
               <state_interface name="velocity"/>
           </joint>
           <joint name="joint_5">
               <command_interface name="position"/>
               <state_interface name="position">
                 <param name="initial_value">${initial_positions['joint_5']}</param>
               </state_interface>
               <state_interface name="velocity"/>
           </joint>
           <joint name="joint_6">
               <command_interface name="position"/>
               <state_interface name="position">
                 <param name="initial_value">${initial_positions['joint_6']}</param>
               </state_interface>
               <state_interface name="velocity"/>
           </joint>

       </ros2_control>
   </xacro:macro>
</robot>

2.2.2修改src/luck_robot/config/luck_description.urdf.xacro文件

├─ 添加use_sim参数定义
├─ 传递use_sim到ros2_control宏
├─ 配置Gazebo插件

这个文件的作用是把静态 URDF（模型）和 ros2_control（接口与硬件抽象）组合成最终的 robot_description（用于仿真或真实硬件）。

<?xml version="1.0"?>
<robot xmlns:xacro="http://www.ros.org/wiki/xacro" name="luck_description">
    <xacro:arg name="initial_positions_file" default="initial_positions.yaml" />
    <xacro:arg name="use_sim" default="true" />

    <!-- Import luck_description urdf file -->
    <xacro:include filename="$(find luck_description)/urdf/luck_description.urdf" />

    <!-- Import control_xacro -->
    <xacro:include filename="luck_description.ros2_control.xacro" />

    <!-- Use GazeboSystem for Gazebo simulation -->
    <xacro:luck_description_ros2_control name="GazeboSystem" initial_positions_file="$(arg initial_positions_file)" use_sim="$(arg use_sim)"/>

    <!-- Gazebo ROS2 Control Plugin -->
    <gazebo>
        <plugin filename="libgazebo_ros2_control.so" name="gazebo_ros2_control">
        </plugin>
    </gazebo>

</robot>

2.2.3修改src/luck_robot/config/moveit_controllers.yaml 文件

├─ 添加action_ns: follow_joint_trajectory
├─ 统一控制器名称为test_group_controller
├─ 设置default: true

这个文件用于 MoveIt 与控制器管理的对接。它告诉 MoveIt 使用哪个 controller manager、有哪些 controller，以及哪个 controller 为默认且控制哪些关节（joints）。其中 action_ns、type、default 等字段影响 MoveIt 如何与控制器交互

# MoveIt uses this configuration for controller management

moveit_controller_manager: moveit_simple_controller_manager/MoveItSimpleControllerManager

moveit_simple_controller_manager:
  controller_names:
    - test_group_controller

  test_group_controller:
    action_ns: follow_joint_trajectory
    type: FollowJointTrajectory
    default: true
    joints:
      - joint_1
      - joint_2
      - joint_3
      - joint_4
      - joint_5
      - joint_6

2.3修改luck_description功能包文件

2.3.1修改src/luck_description/urdf/luck_description.urdf文件

├─ 添加ros2_control配置块（6个关节接口）
├─ 添加gazebo_ros2_control插件
├─ 添加world link和fixed joint

原文件修改如下：

<?xml version="1.0"?>
<!-- This URDF was automatically created by SolidWorks to URDF Exporter! Originally created by Stephen Brawner (brawner@gmail.com)
    Commit Version: 1.6.0-4-g7f85cfe  Build Version: 1.6.7995.38578
    For more information, please see http://wiki.ros.org/sw_urdf_exporter -->
<robot
 name="luck_description">
 <link
   name="base_link">
   <inertial>
     <origin
       xyz="-0.000490995537740322 -0.00045371041194521 0.0329835749869842"
       rpy="0 0 0" />
     <mass
       value="1.05139812423898" />
     <inertia
       ixx="0.00245458460727657"
       ixy="1.54345385186782E-05"
       ixz="-1.44214262882351E-05"
       iyy="0.00245373317242063"
       iyz="-1.35072537232266E-05"
       izz="0.00388761493070379" />
   </inertial>
   <visual>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/base_link.STL" />
     </geometry>
     <material
       name="">
       <color
         rgba="0.898039215686275 0.917647058823529 0.929411764705882 1" />
     </material>
   </visual>
   <collision>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/base_link.STL" />
     </geometry>
   </collision>
 </link>
 <link
   name="link_1">
   <inertial>
     <origin
       xyz="0.00384770679080166 -0.00145805597558288 -0.00591692258684598"
       rpy="0 0 0" />
     <mass
       value="4.35228845100693" />
     <inertia
       ixx="0.0104669899799764"
       ixy="0.000107134955332273"
       ixz="-0.000118971835147097"
       iyy="0.010709018942762"
       iyz="4.50660537183714E-05"
       izz="0.0081692966879217" />
   </inertial>
   <visual>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_1.STL" />
     </geometry>
     <material
       name="">
       <color
         rgba="0.898039215686275 0.917647058823529 0.929411764705882 1" />
     </material>
   </visual>
   <collision>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_1.STL" />
     </geometry>
   </collision>
 </link>
 <joint
   name="joint_1"
   type="revolute">
   <origin
     xyz="0 0 0.152"
     rpy="0 0 0" />
   <parent
     link="base_link" />
   <child
     link="link_1" />
   <axis
     xyz="0 0 1" />
   <limit
     lower="-3.14"
     upper="3.14"
     effort="100"
     velocity="1.000001" />
 </joint>
 <link
   name="link_2">
   <inertial>
     <origin
       xyz="0.00969732150239182 0.212271262937771 -0.00530063353815988"
       rpy="0 0 0" />
     <mass
       value="9.71714519378521" />
     <inertia
       ixx="0.036950607687124"
       ixy="-0.000657369851317249"
       ixz="-3.12415445848607E-09"
       iyy="0.0225899614872816"
       iyz="4.09586418059664E-10"
       izz="0.0316126776742465" />
   </inertial>
   <visual>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_2.STL" />
     </geometry>
     <material
       name="">
       <color
         rgba="0.898039215686275 0.917647058823529 0.929411764705882 1" />
     </material>
   </visual>
   <collision>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_2.STL" />
     </geometry>
   </collision>
 </link>
 <joint
   name="joint_2"
   type="revolute">
   <origin
     xyz="0.12904 -0.048916 0"
     rpy="1.5708 0 1.2085" />
   <parent
     link="link_1" />
   <child
     link="link_2" />
   <axis
     xyz="0 0 1" />
   <limit
     lower="-3.14"
     upper="3.14"
     effort="100"
     velocity="1.000001" />
 </joint>
 <link
   name="link_3">
   <inertial>
     <origin
       xyz="-0.0438026020061207 -0.232447211806827 -0.00218160095080577"
       rpy="0 0 0" />
     <mass
       value="5.97036587956182" />
     <inertia
       ixx="0.0468125775592432"
       ixy="-0.00766802197777573"
       ixz="0.000257924746021982"
       iyy="0.00756656521319655"
       iyz="0.00136837552657405"
       izz="0.0475881277660537" />
   </inertial>
   <visual>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_3.STL" />
     </geometry>
     <material
       name="">
       <color
         rgba="0.898039215686275 0.917647058823529 0.929411764705882 1" />
     </material>
   </visual>
   <collision>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_3.STL" />
     </geometry>
   </collision>
 </link>
 <joint
   name="joint_3"
   type="revolute">
   <origin
     xyz="0.019395 0.42456 -0.138"
     rpy="-3.1416 0 0" />
   <parent
     link="link_2" />
   <child
     link="link_3" />
   <axis
     xyz="0 0 1" />
   <limit
     lower="-3.14"
     upper="3.14"
     effort="100"
     velocity="1.000001" />
 </joint>
 <link
   name="link_4">
   <inertial>
     <origin
       xyz="-8.32374365655753E-07 -0.00287170265688541 0.0145055142756531"
       rpy="0 0 0" />
     <mass
       value="1.96417351339286" />
     <inertia
       ixx="0.0032106143961567"
       ixy="5.63448346620329E-08"
       ixz="-1.18854560464133E-08"
       iyy="0.00258096291205603"
       iyz="-0.000106933957527964"
       izz="0.00228746114709311" />
   </inertial>
   <visual>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_4.STL" />
     </geometry>
     <material
       name="">
       <color
         rgba="0.898039215686275 0.917647058823529 0.929411764705882 1" />
     </material>
   </visual>
   <collision>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_4.STL" />
     </geometry>
   </collision>
 </link>
 <joint
   name="joint_4"
   type="revolute">
   <origin
     xyz="-0.07315 -0.38818 -0.13"
     rpy="0 0 0.13235" />
   <parent
     link="link_3" />
   <child
     link="link_4" />
   <axis
     xyz="0 0 1" />
   <limit
     lower="-3.14"
     upper="3.14"
     effort="100"
     velocity="1.000001" />
 </joint>
 <link
   name="link_5">
   <inertial>
     <origin
       xyz="-0.0109159331997213 0.018666218196776 0.00281146144878552"
       rpy="0 0 0" />
     <mass
       value="2.10963951071355" />
     <inertia
       ixx="0.00223491733886044"
       ixy="0.000210927909434149"
       ixz="-1.39792766411928E-05"
       iyy="0.00199697710678008"
       iyz="2.41930796734157E-05"
       izz="0.00225535034542978" />
   </inertial>
   <visual>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_5.STL" />
     </geometry>
     <material
       name="">
       <color
         rgba="0.898039215686275 0.917647058823529 0.929411764705882 1" />
     </material>
   </visual>
   <collision>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_5.STL" />
     </geometry>
   </collision>
 </link>
 <joint
   name="joint_5"
   type="revolute">
   <origin
     xyz="0 -0.102 0"
     rpy="-1.5708 1.2055 0" />
   <parent
     link="link_4" />
   <child
     link="link_5" />
   <axis
     xyz="0 0 1" />
   <limit
     lower="-3.14"
     upper="3.14"
     effort="100"
     velocity="1.000001" />
 </joint>
 <link
   name="link_6">
   <inertial>
     <origin
       xyz="-2.1923E-11 6.3394E-13 0.051171"
       rpy="0 0 0" />
     <mass
       value="0.025761" />
     <inertia
       ixx="8.083E-06"
       ixy="-5.294E-22"
       ixz="-1.2737E-15"
       iyy="8.083E-06"
       iyz="3.683E-17"
       izz="1.1056E-05" />
   </inertial>
   <visual>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_6.STL" />
     </geometry>
     <material
       name="">
       <color
         rgba="1 1 1 1" />
     </material>
   </visual>
   <collision>
     <origin
       xyz="0 0 0"
       rpy="0 0 0" />
     <geometry>
       <mesh
         filename="package://luck_description/meshes/visual/link_6.STL" />
     </geometry>
   </collision>
 </link>
 <joint
   name="joint_6"
   type="revolute">
   <origin
     xyz="-0.079142 0.13559 0"
     rpy="1.5708 0.053984 0.52833" />
   <parent
     link="link_5" />
   <child
     link="link_6" />
   <axis
     xyz="0 0 1" />
   <limit
     lower="-3.14"
     upper="3.14"
     effort="100"
     velocity="1.000001" />
 </joint>
<transmission name="tran_joint_1">
 <type>transmission_interface/SimpleTransmission</type>
 <joint name="joint_1">
   <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
 </joint>
 <actuator name="joint_1_motor">
   <mechanicalReduction>1</mechanicalReduction>
 </actuator>
</transmission>

<transmission name="tran_joint_2">
 <type>transmission_interface/SimpleTransmission</type>
 <joint name="joint_2">
   <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
 </joint>
 <actuator name="joint_2_motor">
   <mechanicalReduction>1</mechanicalReduction>
 </actuator>
</transmission>

<transmission name="tran_joint_3">
 <type>transmission_interface/SimpleTransmission</type>
 <joint name="joint_3">
   <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
 </joint>
 <actuator name="joint_3_motor">
   <mechanicalReduction>1</mechanicalReduction>
 </actuator>
</transmission>

<transmission name="tran_joint_4">
 <type>transmission_interface/SimpleTransmission</type>
 <joint name="joint_4">
   <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
 </joint>
 <actuator name="joint_4_motor">
   <mechanicalReduction>1</mechanicalReduction>
 </actuator>
</transmission>

<transmission name="tran_joint_5">
 <type>transmission_interface/SimpleTransmission</type>
 <joint name="joint_5">
   <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
 </joint>
 <actuator name="joint_5_motor">
   <mechanicalReduction>1</mechanicalReduction>
 </actuator>
</transmission>

<transmission name="tran_joint_6">
 <type>transmission_interface/SimpleTransmission</type>
 <joint name="joint_6">
   <hardwareInterface>hardware_interface/PositionJointInterface</hardwareInterface>
 </joint>
 <actuator name="joint_6_motor">
   <mechanicalReduction>1</mechanicalReduction>
 </actuator>
</transmission>


<!-- ==================================================== -->
<!-- 关键修改四：将底座固定在世界坐标系 -->
<!-- ==================================================== -->

<!-- 防止整个机械臂在重力作用下掉落[1](@ref) -->
<link name="world"/>

<joint name="world_to_base_fixed_joint" type="fixed">
 <parent link="world"/>
 <child link="base_link"/>
 <origin xyz="0 0 0" rpy="0 0 0"/>
</joint>
</robot>

三，测试

cd ~/luck_ws
colcon build --symlink-install
source install/setup.bash

尝试运行

ros2 launch luck_gazebo gazebo_moveit.launch.py

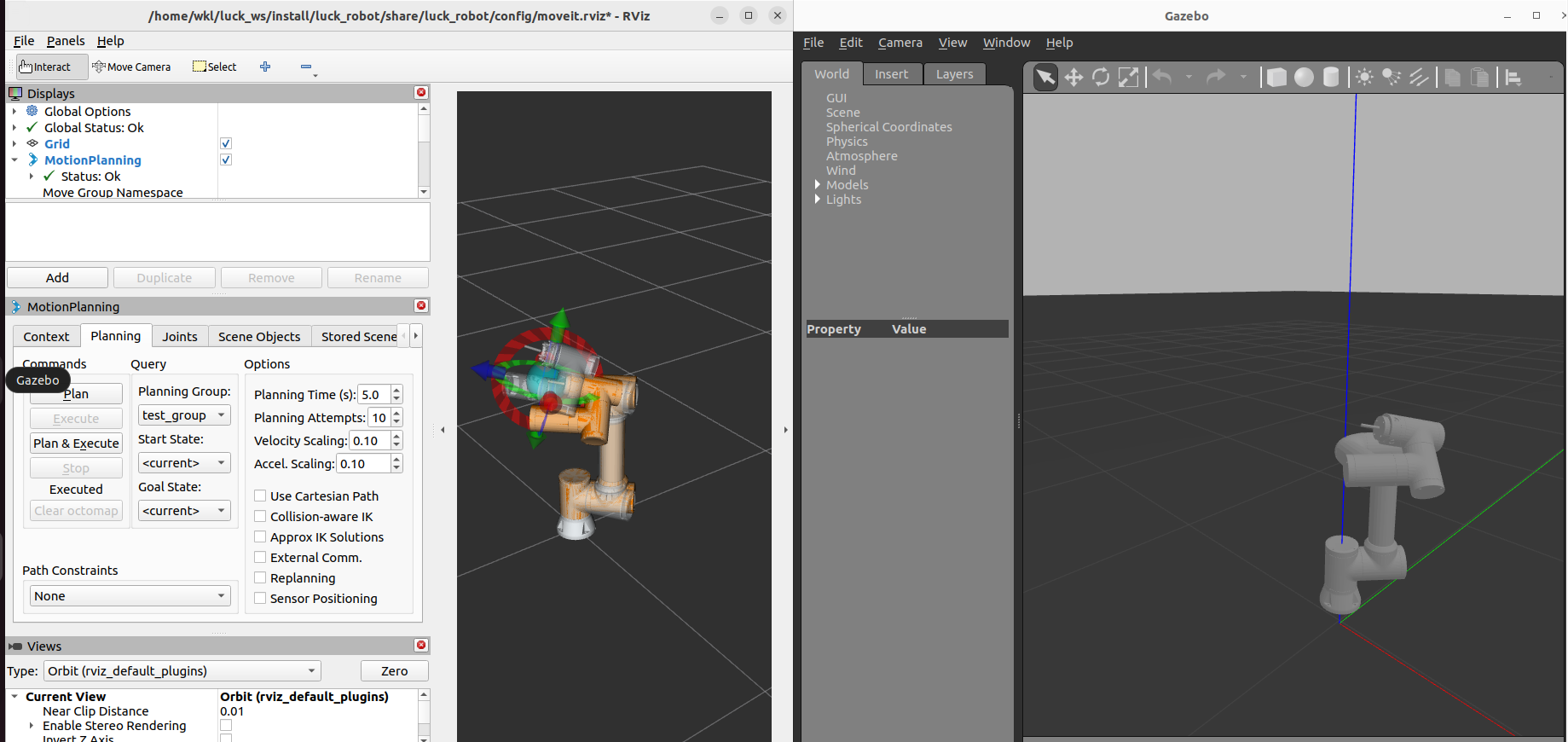

在这里插入图片描述

全球具身智能开发者社区

立足具身智能前沿赛道，致力于搭建全球化、开源化、全栈式技术交流与实践共创平台。

更多推荐

开源聚势·具身启智，杭州这场沙龙给出中国具身智能产业化新答案

全球具身智能开发者社区

YoMo安全机制详解：TLS v1.3如何保护你的AI代理通信

在当今AI驱动的分布式系统中，安全通信已成为不可忽视的核心需求。YoMo作为Serverless AI Agent Framework，采用TLS v1.3加密协议构建了强大的安全防护机制，确保AI代理在地理分布式边缘计算环境中的通信安全。本文将深入解析YoMo的TLS实现原理、配置方法及最佳实践，帮助开发者构建安全可靠的AI应用。## 为什么TLS v1.3是AI代理通信的理想选择TLS

全球具身智能开发者社区

InternScenes开源数据集

数据集介绍 InternScenes 是上海人工智能实验室发布的大规模、可模拟室内场景数据集，论文收录于 NeurIPS 2025。具身人工智能的发展高度依赖于具有场景多样性和逼真布局的大规模、可模拟3D场景数据集。然而，现有数据集通常存在以下不足：数据规模或多样性有限、布局经过"净化"处理导致小物体缺失，以及严重的物体碰撞问题。为解决上述问题，InternScenes 整合
